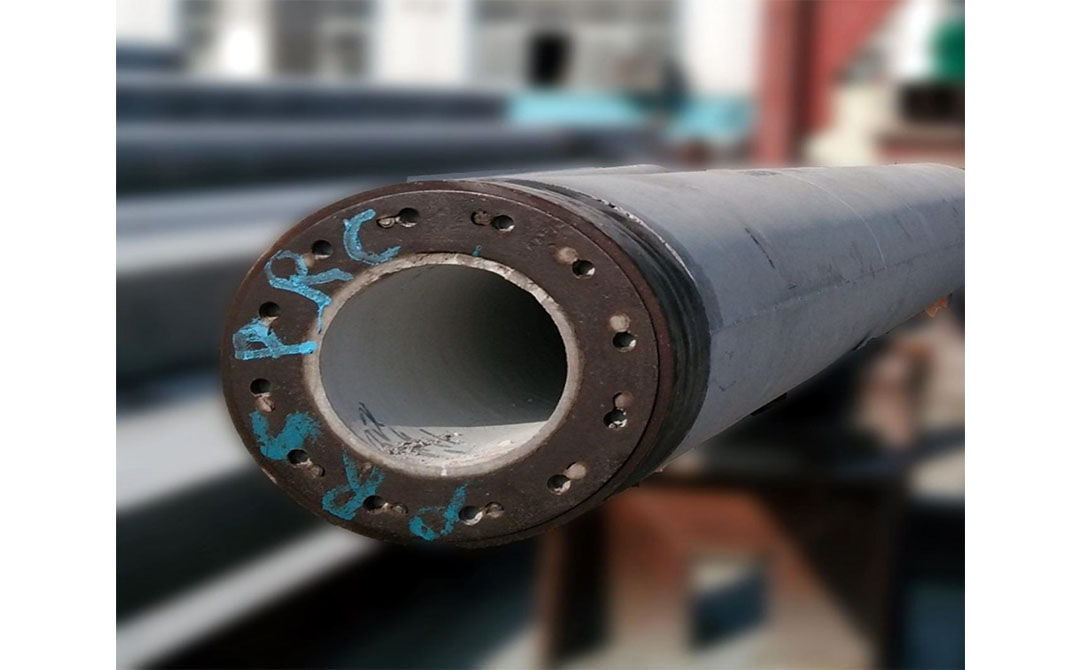

Prestressed and Reinforced High-Strength Concrete Pipe Pile
Prestressed and Reinforced High-Strength Concrete Pipe Pile (PRC Pile) is a new type of precast pile that rationally combines prestressed steel bars with conventional reinforcement.Its horizontal bearing capacity,shear resistance, and energy dissipation capabilities are significantly enhanced. It can be used in high seismic intensity or foundation projects subject to substantial horizontal forces, excavation support projects,or retaining structures.
Applications：

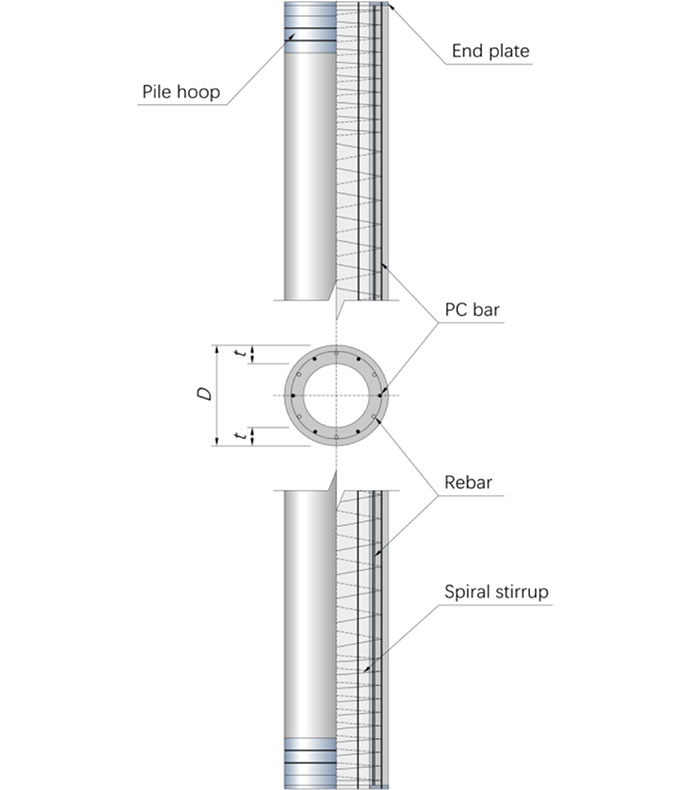

Structural Diagram
Reinforced Concrete Pipe Pile
Prestressed High-Strength Concrete Spun Pile (PHC Pile) stands as a fundamental and widely utilized cement product in modern foundation engineering. It exhibits exceptional properties, including high strength (over 80 MPa), superior density, a low water-cement ratio, and extremely low permeability (impermeability rating > P12). Renowned for its outstanding impact resistance and high structural load-bearing capacity, it is extensively applied across various projects, from industrial and civil buildings to highways, railways, bridges, ports, and wharfs.
The DPHC Pile, or Pre-tensioned Prestressed High-Strength Corrosion-Resistant Concrete Pipe Pile, is a specialized variant engineered for challenging environments. It demonstrates high durability, making it particularly suitable for use in corrosive conditions involving chlorides and sulfates, as well as in settings subject to freeze-thaw cycles.
