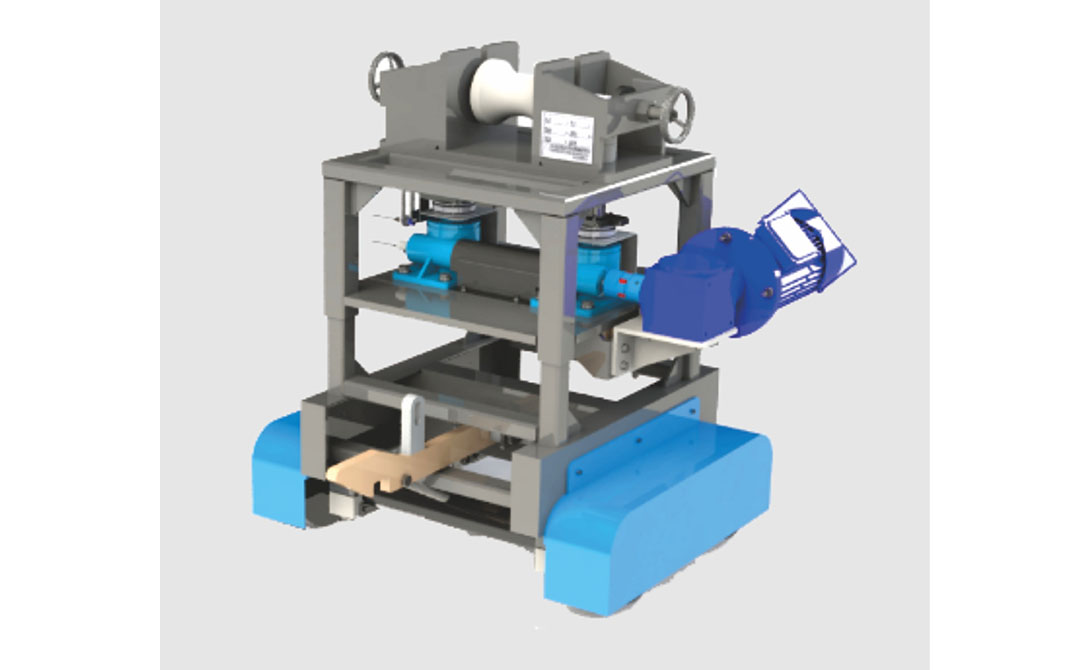

Pumpline Lift Following Trolley

Product function : It is used to solve the problem of inaccurate initial measurement of the metering flat car caused by the different center of the pile mold and the pump tube center on the metering flat car, when the old and new piles mold are mixed and the running  wheel  wearis  different.


Product highlights : Automatically adjust the pump tube height in a small range, improve production efficiency, achieve automatic control, precise measurement of concrete pumping volume and other functions.


Technical specification

Size(L* W* H) : 1.2*1.1*1.3

Equipment weight : 540Kg

Three-phase asynchronous brake motor power : 2.2KW

Pump tube lift stroke : 20MM

Turbo screw lift maximum stroke : 100MM

Turbo screw lift reduction ratio : 24:1

Helical taper gear commutator reduction ratio : 1:1

Lifting speed : 7mm/s"
